How to Create a Google Cloud Filestore Instance

In this blog, you will learn how to create a Google cloud filestore instance. Filestore is a service which is provided by GCP. Filestore is an instance which needs to be created first then you can use it to VM or GKE and it is a managed NFS file servers on GCP. It can be used for the application which are running on Google Kubernetes Engine (GKE) clusters or compute engine virtual machines.

There are 2 ways to create and manage Filestore instance:

  1. Google Cloud Console
  2. gcloud command-line tool

Steps to create a Google Cloud Filestore instance

  1. Login to the Google Cloud Console, Navigate to the Storage > Filestore service.
  2. Click Create Instance
  3. Enter all required fields

– Instance ID must be unique in the Cloud project and zone where it’s located, Instance ID cannot be changed after created.

– Select the Filestore instance type as per your need (combines instance type and storage), this cannot be changed once created.

Create a Google Cloud Filestore Instance

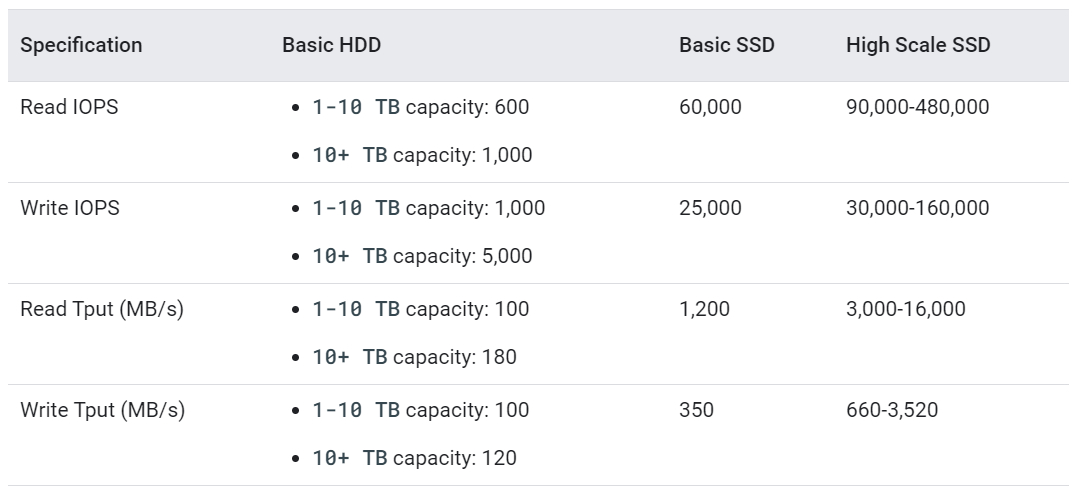

Storage type

Create a Google Cloud Filestore Instance

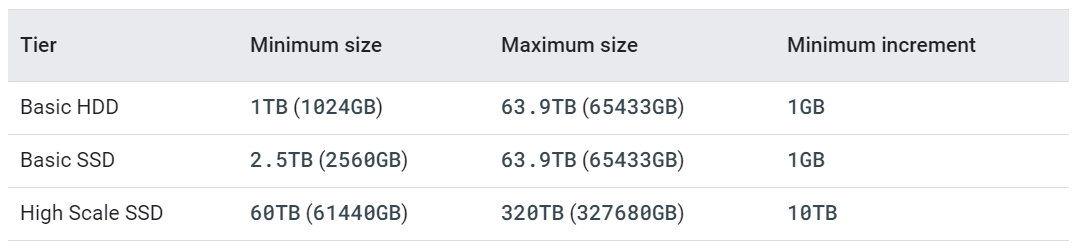

Allocating capacity

Create a Google Cloud Filestore Instance

File share

It is the directory on a Filestore instance to which you mount or map on the client VM.

VPC network:

Compute Engine VMs must be on the same network as the Filestore instance to access the shared files stored on that instance.

For the best performance and to avoid cross-regional networking charges, ensure that the Filestore instance is located in the same region as the Compute Engine VMs that need to access them.

  1. Click Create

This is how to create a Google cloud filestore instance via cloud console.

How to create a Google cloud filestore instance via gcloud command-line

Prerequisite:

Install Cloud SDK or use Cloud shell (built into cloud console)

gcloud command for creating a Filestore instance

Syntax:

gcloud [beta] filestore instances create instance-id \

    --[project=project-id] \

    --[zone=zone] \

    --tier=tier \

    --file-share=name="file-share-name",capacity=file-share-size \

    --network=name="vpc-network",[reserved-ip-range="reserved-ip-address"]

This is the end of blog – How to Create a Google Cloud Filestore Instance.
